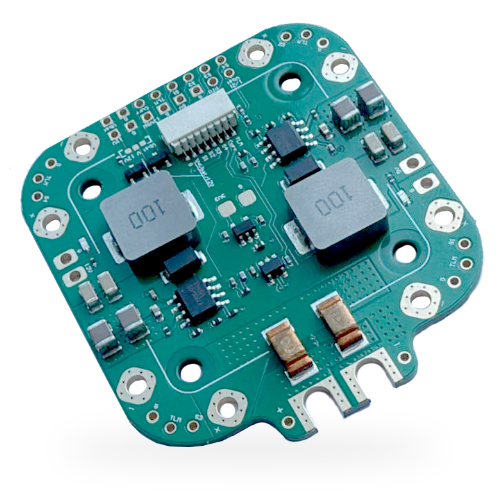

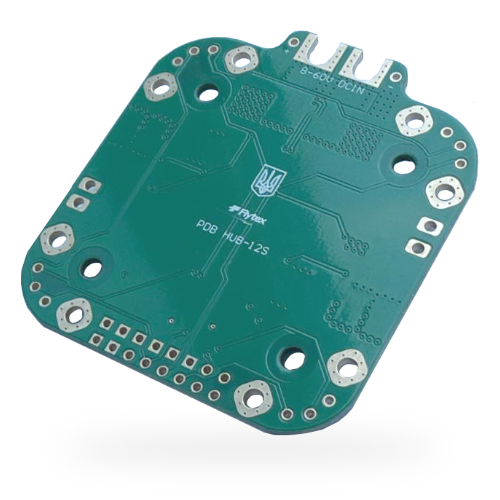

Flytex FCHUB12S PDB power distribution board

Flytex FCHUB12S — High-current PDB for large drones and X-Class platforms

Flytex FCHUB12S is a powerful power distribution board designed for heavyweight and high-thrust drones. It is designed to work with batteries up to 12S LiPo and provides stable power to all onboard systems even under extreme loads.

The board is equipped with integrated stabilizers, sensors, and reliable power tracks, allowing you to create a compact and safe power module for FPV platforms, X-Class aircraft, hybrid wings, and other high-performance UAVs.

Key Features Supports up to 12S
power Large cross-section power buses and copper traces withstand high currents without overheating, which is critical for large propellers and powerful ESCs.

Integrated dual BEC 5V
5A BEC for powering receivers, telemetry systems, and peripherals 12V 5A BEC for video transmitters, cameras, and additional electronics Both lines are stabilized and protected. Built-in current and voltage measurement The board transmits accurate power consumption data to the controller: — battery voltage measurement — high-precision current sensor This allows you to control consumption, predict battery life, and ensure that failsafe algorithms work correctly.

Power Distribution Board
Input voltage: 8–60 V (3–12S LiPo)
Current: 4×70A continuous, 4×110A peak
ESC connection: 4 power/signal/telemetry outputs
Current sensor: 440A, 3.3V ADC, Scale factor 75
LED indication: 2 LEDs for 5V and 12V
Built-in voltage divider: 1K:20K
Connector: JST-SH 8-pin
Pad “V”: switch between 12V or VBat
G: ground
Curr: current sensor output
TLM: BLHeli_32 ESC telemetry
S1–S4: ESC signal lines

BEC 5V (5V pad output)
Voltage: 5.1V ± 0.1V
Current: 5A continuous, maximum 6A
Short circuit resistance (2 seconds)
Overload protection and automatic recovery

BEC 12V (12V pad output)
Voltage: 12.0V ± 0.2V (if input voltage ≥12V)
Current: 5A continuous, maximum 6A
If input voltage <12V, output voltage equals input voltage
Audible noise may occur from the choke when VIN <12V
Short circuit resistance (2 seconds)
Overload protection and automatic recovery

Controlled 12V output (12VSW pad)
On/off control via PINIO (high/low)
Continuous load: 2 A
Can be used to power VTX, LED, etc.

Physical characteristics
Mounting holes: 30.5 × 30.5 mm, Ø3 mm
Dimensions: 55 × 50 × 6 mm 
Weight: 21 g

Package contents
1× FCHUB-12S
1× SH1.0 8-pin cable, 50 mm
