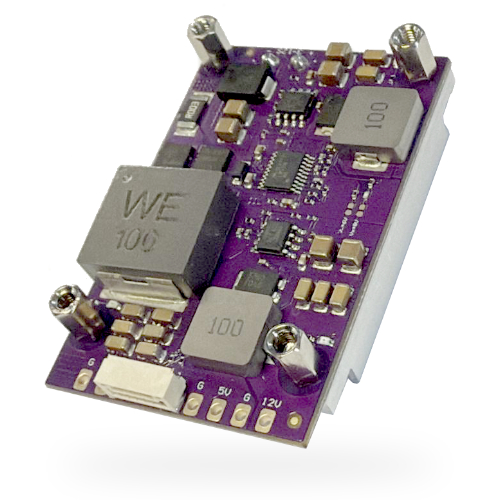

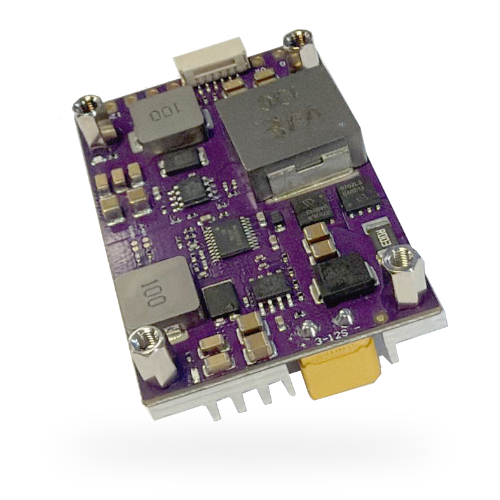

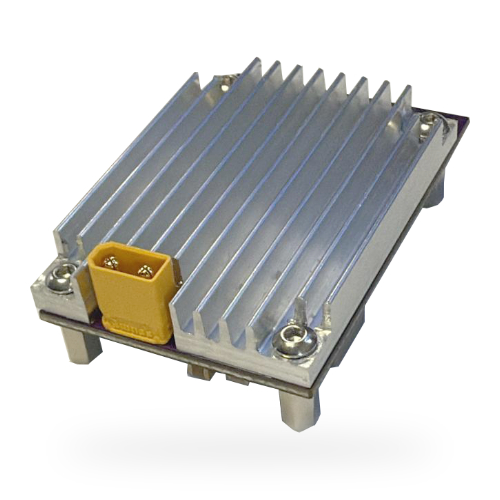

Flytex PDB 12S power module

PDB 12S power distribution module for wing-type UAVs, 140A / 12S / 3xBEC, alternative to Matek PM12S-3

The PDB 12S module is a reliable power distribution unit for unmanned aerial vehicles (FPV wings, industrial, hybrid platforms), compatible with batteries up to 12S (50.4V). It provides a stable current supply of up to 140A and has three independent BEC outputs (9V/4A, 5V/4A, Vx/15A) for powering controllers, video systems, and other electronics. Equipped with a telemetry output (Current/Voltage sense), as well as the ability to monitor via a flight controller (e.g., via ADC or I²C).

Key features:
Battery support: 3S–12S LiPo (up to 50.4V).
Continuous current: 140A.
Telemetry: current, voltage, and temperature measurement.
BEC outputs: 9V/4A, 5V/4A, Vx (e.g., VBAT)/5.25V/6V/8V 15A.
Compact dimensions: 61×40×15 mm.
Weight: 53g.

PDB 12S is the ideal choice for powerful drones with high energy consumption. It provides efficient and safe power to your platform and is a full-fledged analogue of the PM12S-3 from Matek Systems.

Tags: Power distribution module, PDB 12S
