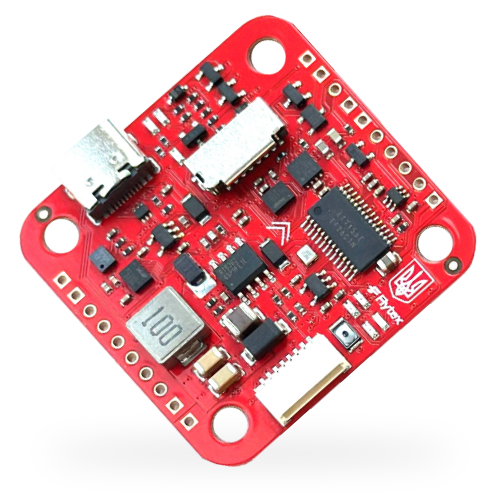

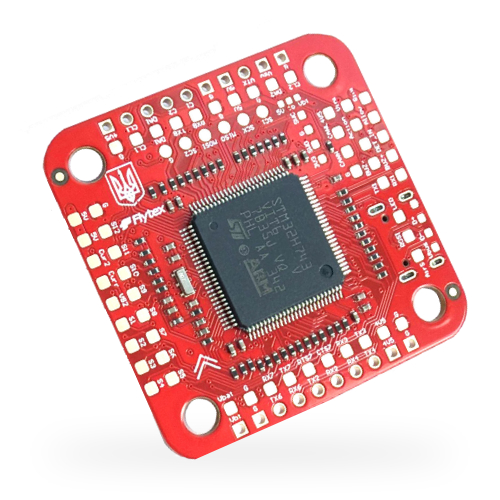

Flight controller Flytex Furia H743 Slim 12S
Flytex Furia H743 SLIM 12S - High performance flight controller for FPV quadcopters
The Flytex Furia H743 SLIM 12S is a top-of-the-line flight controller designed for FPV drones that require maximum performance, reliability, and customization flexibility. Equipped with a powerful STM32H743VIT6 processor, it provides high data processing speed, 12S LiPo support, and a wide range of interfaces for connecting additional equipment.
Main features of Flytex Furia H743VIT6 SLIM 12S:
- STM32H743VIT6 processor is a 32-bit chip with a clock speed of 480 MHz for instant response and smooth flight.
- Support for 12S LiPo (50.4V) - maximum power for the next generation of FPV drones.
- SLIM form factor - compact design for installation in tight spaces.
- High-speed IMU sensors - precise orientation detection and stable flight even in difficult conditions.
- Support for modern firmware - compatible with Betaflight, INAV, ArduPilot for different types of flights.
- UART, I2C, SPI, CAN interfaces - advanced options for connecting external devices.
- OSD and Blackbox support - full control over telemetry and flight analysis.

Польотні контролери FC | |
Interface | 2X I2C, 1XCAN, 1XSPI |
MCU (Microcontroller unit) | STM32H743VIT6, 480MHZ, 2MB FLASH |
IMU (Inertial Measurement Unit) | 2X ICM-42688P |
ADC | 6X ADC |
Baro | SPL06-001 |
Camera inputs | 2X |
OSD (On Screen Display) | AT7456E |
Blackbox | MICROSD |
BEC (Battery eliminator circuit) | 2X : 3A 5V , 3A 12V |
UARTs (Universal Asynchronous Receiver-Transmitter) | 7X |
USB | TYPE C |
Input voltage | 6-60V 2S-12S |
Power switch | 9V-12V |
PWM | 13X |
-
2200.00 грн.
