Stack F405 + ESC 65A 6S V3
Stack F405 + ESC 65A 6S V3 is a set of Fuzia F405 6S flight controller and Fuzia ESC 60A 6S speed co...

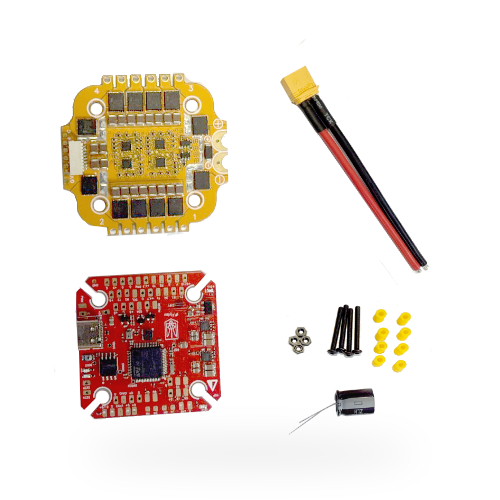

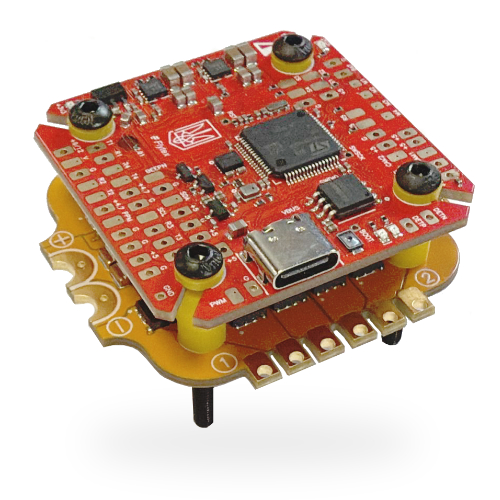

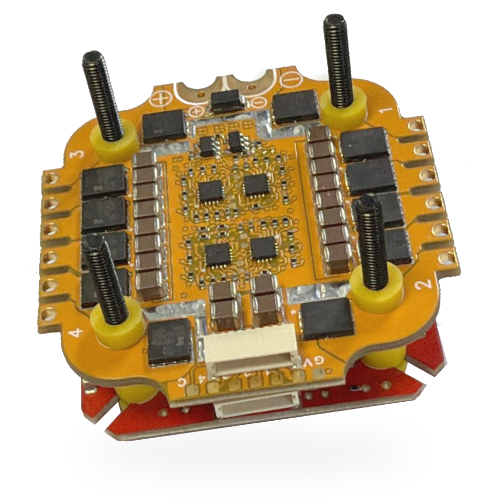

Stack F405 + ESC 65A 6S V3 is a set of Fuzia F405 6S flight controller and Fuzia ESC 60A 6S speed controller boards. with additional elements:
screw M3*30 4 pcs
nut M3 4 pcs
cable for connecting the flight controller and the regulator 1 pc
capacitor 1000μF 35V with low resistance 1 pc
power cable with XT60 connector 1 pc
| Польотні контролери FC | |
| MCU (Microcontroller unit) | STM32F405RGT6 |
| IMU (Inertial Measurement Unit) | ICM-42688P |
| Baro | SPL06-001 |
| Camera inputs | 2X |
| OSD (On Screen Display) | AT7456E |
| Blackbox | W25Q128JVSIQ |
| BEC (Battery eliminator circuit) | 3A 5V | 3A 12V |
| UARTs (Universal Asynchronous Receiver-Transmitter) | 6X |
| USB | TYPE C |
| Input voltage | 2S-6S |
| Power switch | 9V-12V |
| ESC | |
| Робочий струм | 65A |
| Максимальний струм | 80A (10s) |
| Конфігурація акумулятора | LIPO 3S-6S |
| MCU (Microcontroller unit) | Silabs BB21 48Mhz |
| Датчик струму | shunt 0,3mOhm |
| Датчик температури | onboard |
| Зовнішній конденсатор | 1000uF 35V low impedance |
| Формат | 4 in 1 |
| General parameters | |
| Програмне забезпечення | BLheli_S |
| Delivery set | Screw M3*30 — 4 pcs, Nut M3 — 4pcs, Loop for connecting the watering can and regulator — 1 pc, Capacitor 1000μF 35V with low resistance — 1 pc, Power cable with HT60 connector — 1 pc. |
| Зовнішній розмір | 44x45mm |
| Монтажні отвори | 30.5*30.5 |
-
2100.00 грн.
