Video transmitter Flytex Fuzia VTX 2.5W 5.8G

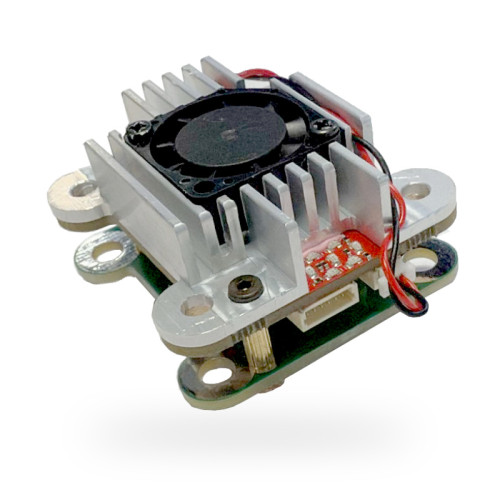

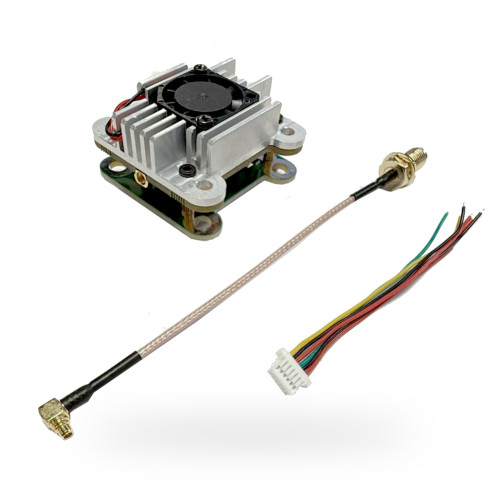

The powerful Flytex Fuzia VTX 2.5W 5.8G video transmitter with adjustable power output, with a maximum stable power output of 2500 mW. It has a sturdy AL heat sink that provides effective heat dissipation and protects the device from overheating. Thanks to this, the transmitter provides reliable transmission of a stable signal without interruptions. The Fuzia VTX 2.5W 5.8G will be a great powerful addition to your FPV kit.

This VTX supports ABEFRLHX bands, has a standard 30.5×30.5 mm mounting pattern, and is powered by 2-6S LiPo. It supports manual frequency adjustment, convenient LED indication of the selected channel and band, and is controlled via the IRC Tramp protocol.

Частотна таблиця

CLI

vtxtable channels 8
vtxtable band 1 BAND_A A FACTORY 0 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B FACTORY 0 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E FACTORY 0 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 BAND_R R FACTORY 0 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 5 BAND_L L FACTORY 0 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable band 6 BAND_S S FACTORY 0 6002 6028 6054 6080 6106 6132 6158 6184
vtxtable band 7 BAND_X X FACTORY 0 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable band 8 BAND_F F FACTORY 0 4600 4640 4680 4720 4760 4800 4840 4880
vtxtable powerlevels 4
vtxtable powerlevel 1 25 25
vtxtable powerlevel 2 500 500
vtxtable powerlevel 3 1000 1W
vtxtable powerlevel 4 2500 2W5
save

Download VTX Table JSON file for Betaflight

File: Download file with VTX table data for Betaflight in json format

Additional features of the board:

1. Control step: 25/500/1000/2500 mW;
2. Passive cooling system with the ability to connect a fan;
3. 7-segment LED indicator to check current settings;
4. Supply voltage 7-26 V;
5. Switching between manual control and IRC

Starting and synchronising with the flight controller

Starting and synchronising with a flight controller

After start-up, the VTX display will show the following image:

This means that the transmitter has started up, but communication with the flight controller has not yet been established.

Indication.

As soon as the connection is established, depending on the selected protocol, the display will briefly show (a) smartaudio or (b) tramp.

After that, the band letter (ABEFRLHX), channel number (1-8), power level (1 = 25 mW, 2 = 500 mW, 3 = 1000 mW, 4 = 2500 mW) will be displayed alternately.

Button

The button is used for manual configuration. After the transmitter establishes communication with the flight controller and starts cycling through the set parameters, a long press (more than 10 seconds) of the button will stop the scan and allow you to set the selected parameter. A short press (1-9 sec.) cyclically changes the parameter upwards (A->X, 1->8). a long press saves the selected value.
