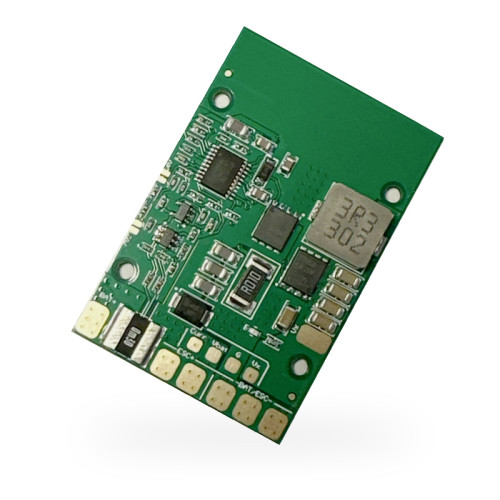

Flytex PDB 8S Power Distribution Board with 220A Current Sensor

Flytex PDB 8S — High-Voltage Stability and Protection for Fixed-Wing UAVs

The Flytex PDB 8S is a professional-grade power distribution board featuring a wide input voltage range (8V-36V). It is specifically engineered for FPV wings and high-power unmanned systems where precision and durability are non-negotiable.

Core Engineering Features:

• Advanced TVS Protection: The integrated Transient Voltage Suppressor (TVS diode) absorbs harmful voltage spikes during battery connection, ensuring the safety of your flight controller and sensitive electronics.
• Precision 220A Current Sensing: Provides accurate power monitoring for mission-critical reliability. Optimized for INAV (Scale 150) and ArduPilot (66.7 A/V) flight stacks.
• High Current Endurance: Designed to handle a continuous load of 90A and burst peaks up to 220A, making it suitable for high-torque motor setups.
• Fixed-Wing Optimized: Features dual dedicated ESC pads, making it the perfect choice for twin-motor fixed-wing platforms or high-performance FPV wings.

Specifications:

• Voltage Range: 3S - 8S LiPo (8V - 36V).
• Current Rating: 90A Continuous / 220A Burst.
• Current Sensor: 220A, 3.3V ADC.
• Protection: Built-in TVS diode.
• Applications: Fixed-wing UAVs, reconnaissance drones, long-range platforms.
